Aero Carbon Road Frameset — UAE Edition
Toray T1000 + T1100 aero road frameset with integrated cockpit. Disc-brake, custom paint available.
$899
USD, ex. shipping
- Toray T1000 75% + T1100 25% carbon fibre lay-up
- Integrated aero cockpit — handlebar included
- Flat-mount disc brake, thru-axle 100×12 / 142×12
- Frame 1230g ± 30g (size M) — fork 530g ± 10g
- BSA 68mm 1.37×24T threaded bottom bracket
- 2-year manufacturer warranty
Size
Color / Finish
Specifications
Type
Carbon Road Bike Frame
Material
Toray T1000 75% + T1100 25% Carbon Fibre
Color
All Black Paint / Customize
Finish
UD Black Matte / Glossy
Headset Size
Top 1-1/8 (30.5mm) / Down 1-1/8 (41.5mm)
Bottom Bracket
BSA 68mm 1.37×24T
Available Size
S / M / L
Maximum Load
290 KG
Axle / Wheels
Through Shaft 100×12 / 142×12mm Disc Brake
Brake
Disc Brake (Center Lock or 6 Nails)
Fork Weight
530g ± 10g (Disc Fork)
Seat Post Weight
68g ± 10g
Frame Weight
1230g ± 30g (Size M Disc Frame)
Frame Set Includes
Frame, Fork, Seatpost, Handlebars, Clamp, Headset, 2× Axle
Warranty
2 Years
Customs & Duty
Buyer bears the charges

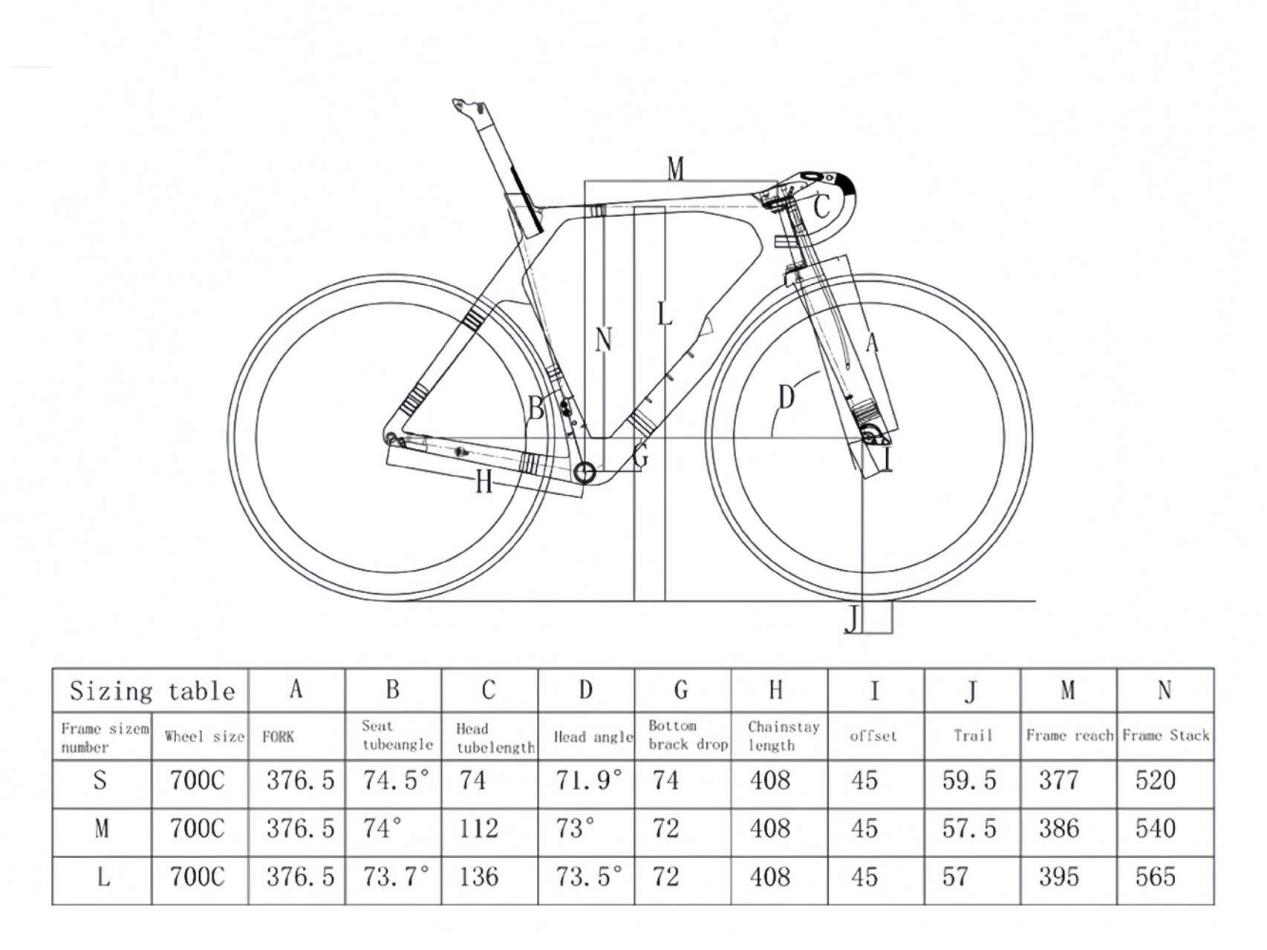

Geometry
